SINIWO is a high-tech enterprise focusing on the R&D and production of 3×4 industrial matrix keypad. With a professional factory and an excellent R&D team, we are committed to providing high-quality and high-performance industrial keypad solutions to customers around the world.

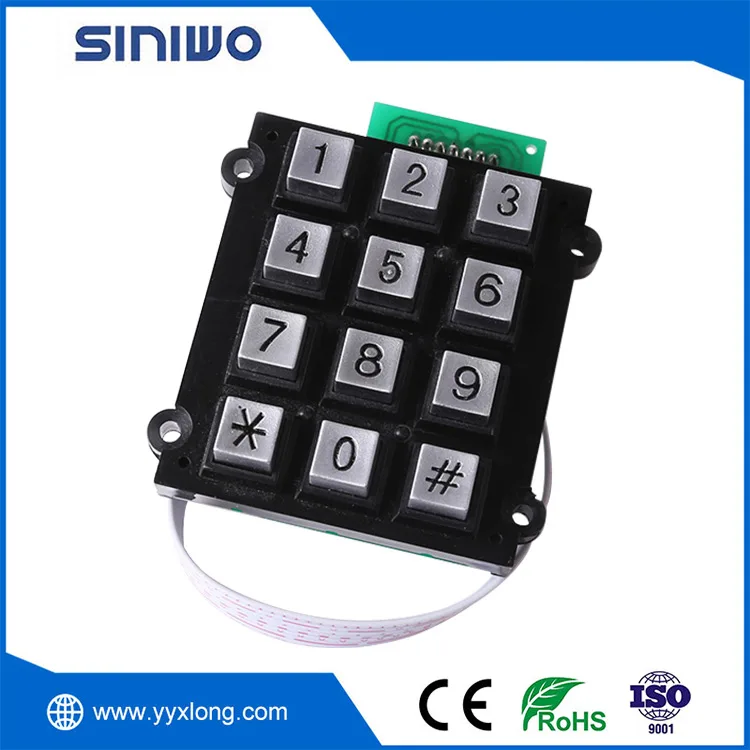

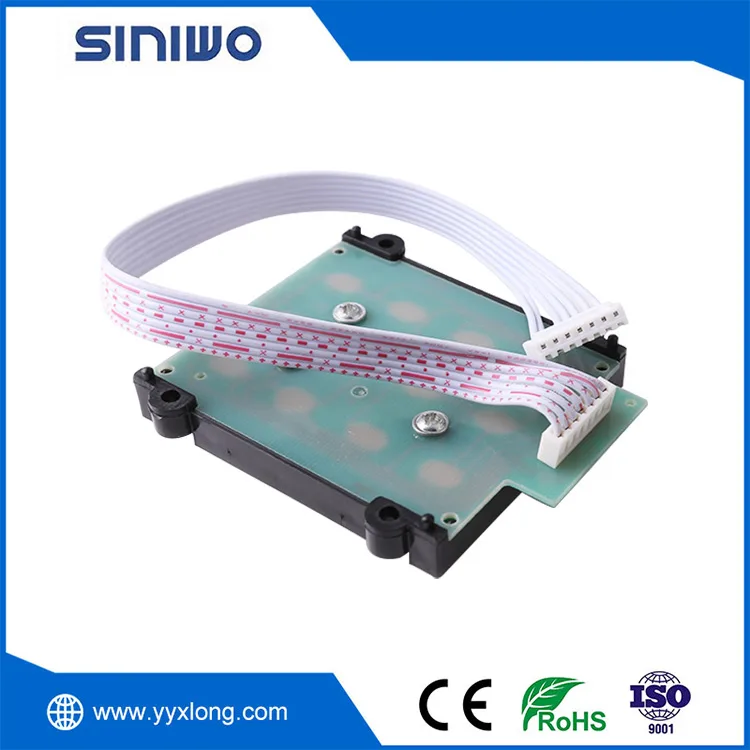

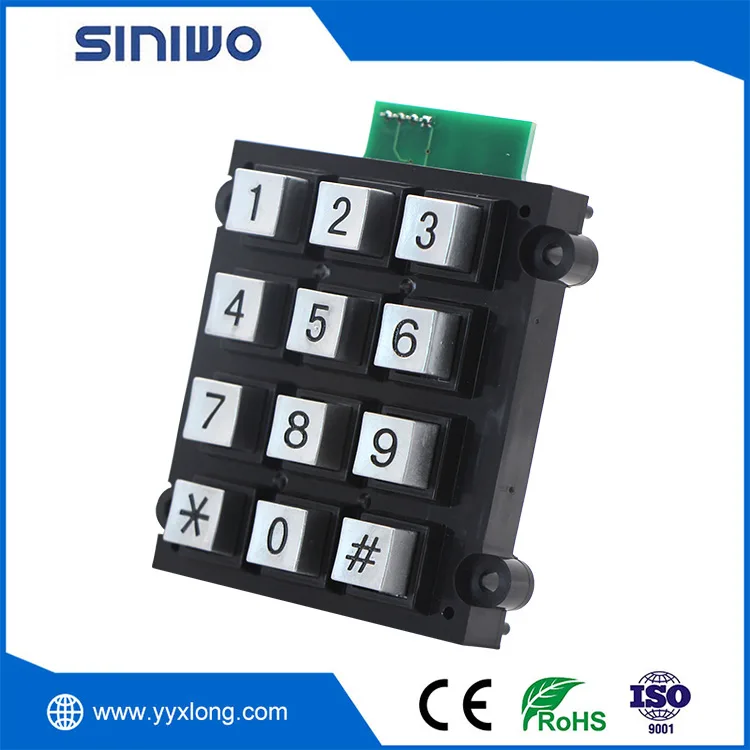

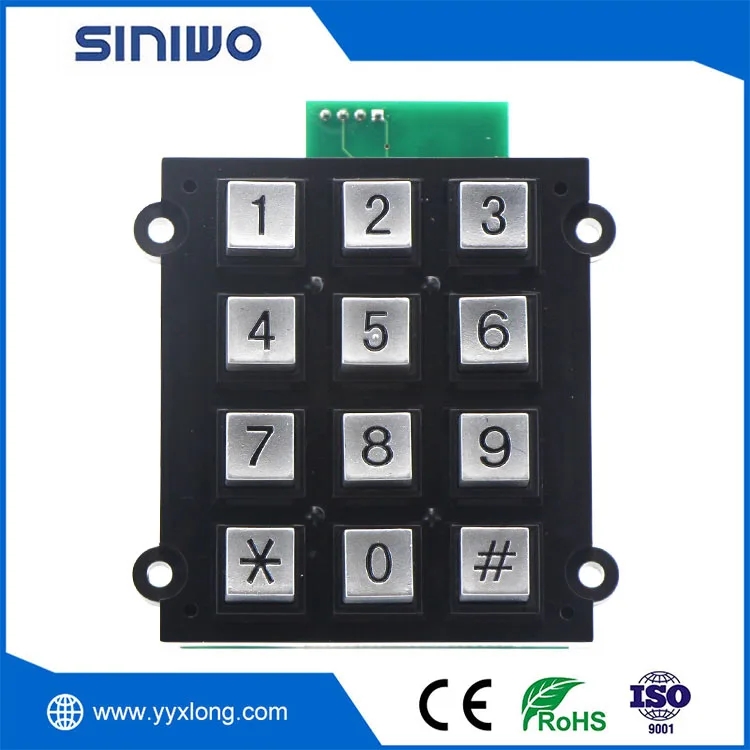

The 3×4 Industrial Matrix Keypad produced by SINIWO manufacturer are specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery.
| Model No. | B501 |
| Waterproof Grade | IP65 |
| Circuit board | customized |
| Shock Resistance | IK09 |
| Key travel | 0.45mm |
| Place of Origin | Zhejiang, China |
| Material | special zinc alloy |
| Warranty | 1 Year |
| Button | bright chrome or matte chrome plating |
| Storage Temperature | -40℃ ~ +85℃ |
| Operation Temperature | -25℃~+65℃ |
The 3×4 Industrial Matrix Keypad buttons are made of s made of ROHS approved zinc alloy, a material with good mechanical properties and wear resistance, ensuring the durability of the keypad. The operating life of each key can reach more than 1 million times, showing an excellent service life. The contact force of the key is 200 g, ensuring clear feedback for each key press.
3×4 Industrial Matrix Keypad can The keypad can be used in an ambient temperature range of -40°C to +70°C, adapting to various extreme climate conditions, and meeting the surface waterproof IP67 standard, effectively preventing moisture from damaging the keypad. It also complies with the IK08 explosion-proof standard to ensure safety in specific environments.
3×4 Industrial Matrix Keypad is an ideal choice for self-service terminal equipment such as gas dispensers due to its excellent mechanical properties, stable electrical specifications and outstanding environmental adaptability. We provide various types of interface technologies to facilitate connection with other equipment.
