Explosion Proof Telephone Handset

SINIWO is a professional manufacturer and supplier in China. Our factory provides industrial keypad, emergency telephone handset, metal keypad, etc.

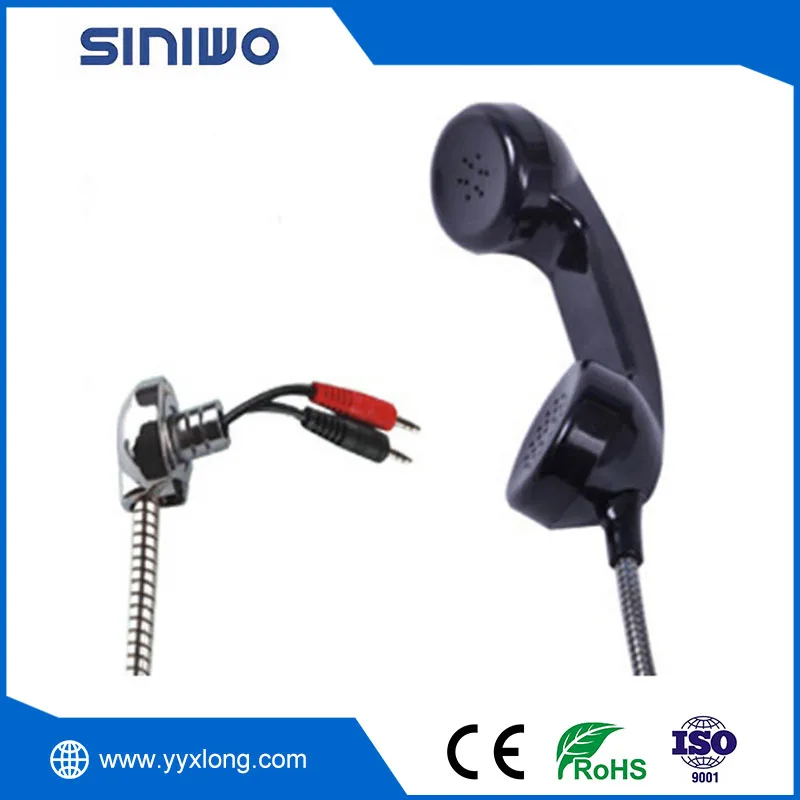

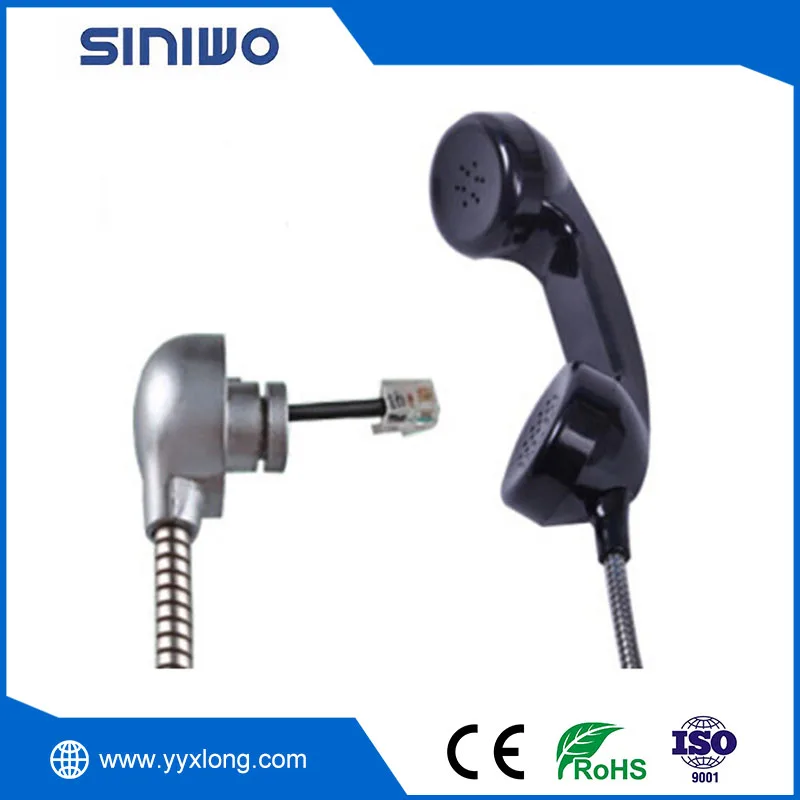

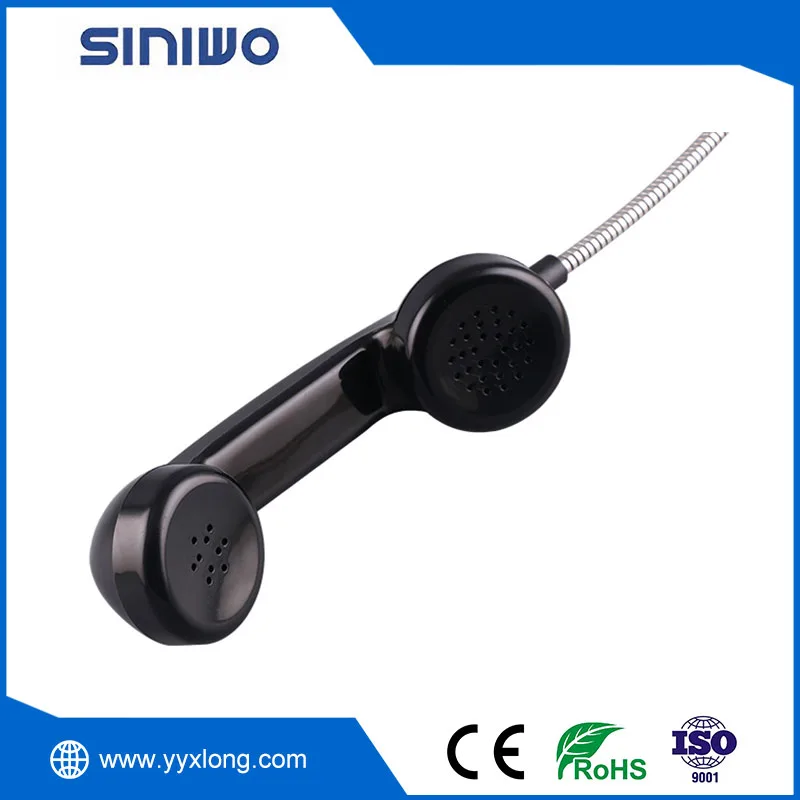

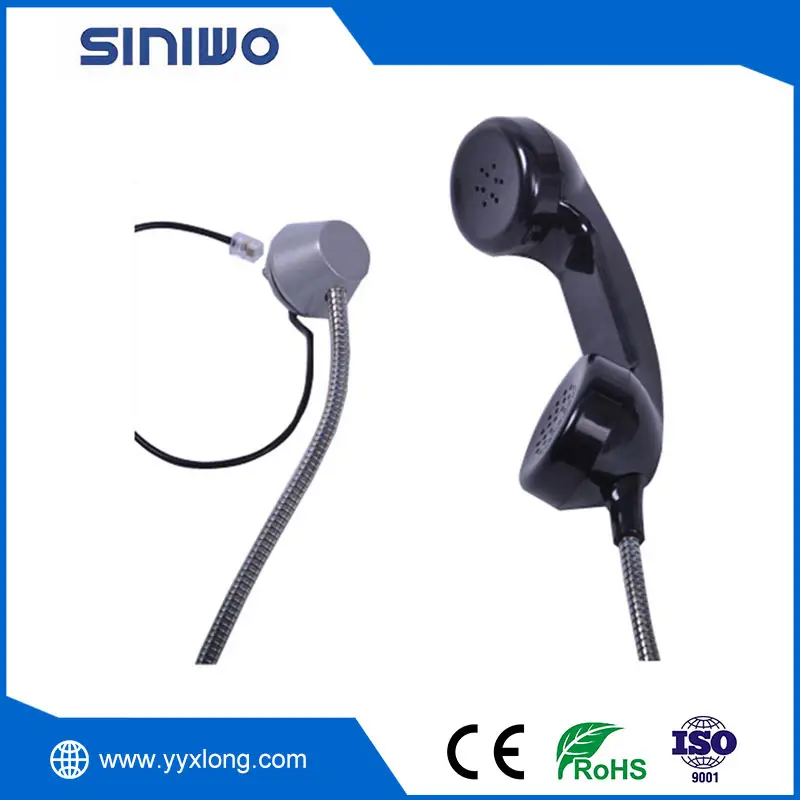

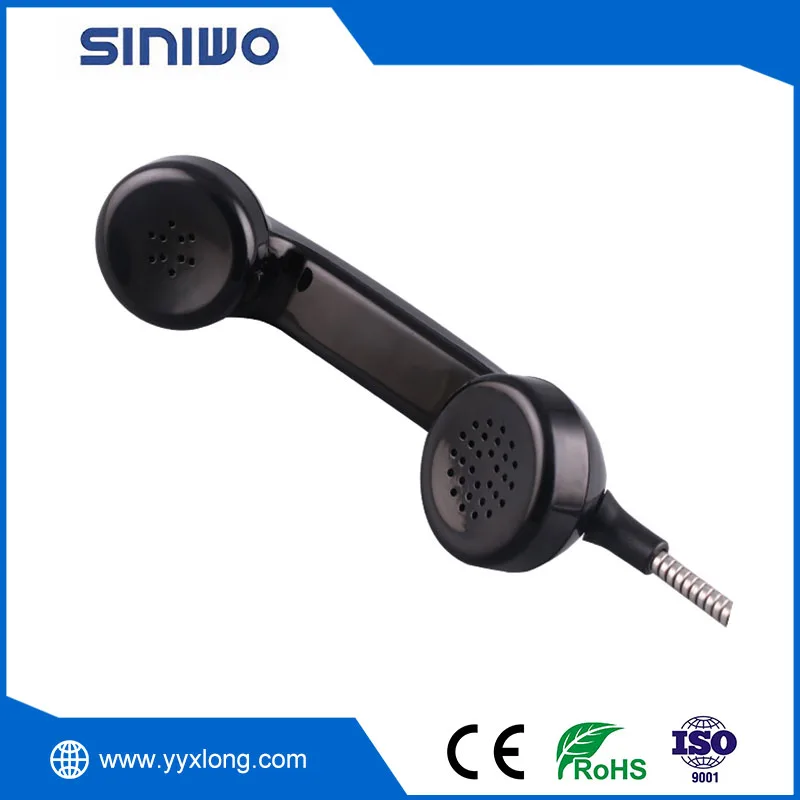

Explosion Proof Telephone Handset

SINIWO is a longstanding Chinese brand specializing in industrial explosion-proof telephones. As a leading manufacturer and supplier, we are committed to providing customers with high-quality products at competitive prices. We build the SINIWO brand on a foundation of advanced technology, a solid reputation, and comprehensive services.

Model: A11

Description

SINIWO’s explosion-proof telephone handset was originally designed for traditional payphones, but it is also compatible with any public telecommunication system equipped with anti-vandal caps. This design significantly enhances its vandalism resistance in public areas.

For outdoor environment, UL approved ABS material and Lexan anti-UV PC material are available and it could keep good appearance after used many years. With noise canceling microphone and hearing-aid speaker, this explosion proof telephone handset could be chose for hearing-impaired person and noise reducing microphone could cancel the noise from background.It could be used in any public telephones, outdoor payphones, outdoor emergency telephones or outdoor kiosk.

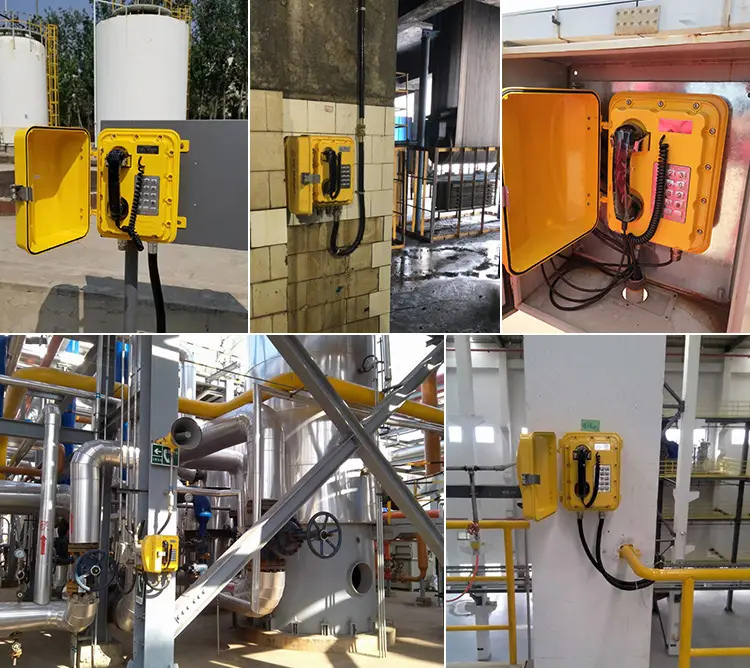

2-----------_793301

Specifications

Parameter of explosion proof telephone handset:

Model No. A11
Waterproof Grade IP65
Ambient Noise ≤60dB
Working Frequency 300~3400Hz
SLR 5~15 dB
RLR -7~2 dB
Working Temperature Common:-20℃~+40℃
Special: -40℃~+50℃
(Please tell us your request in advance)
Relative Humidity ≤95%
Atmospheric Pressure A 80~110Kpa
Logo customized
Color customized

Feature

Feature of explosion proof telephone handset:

(1). PVC curly cord (Default), working temperature:
Standard cord length 9 inch in retracted, 6 feet after extended (Default)
Customized different length is available.
(2). Weather resistant PVC curly cord (Optional)
(3). Hytrel curly cord (Optional)
(4). SUS304 Stainless steel armored cord (Default)

– Standard armored cord length 32 inch and 10 inch, 12 inch, 18 inch and 23 inch are optional.

Include steel lanyard which is anchored to telephone shell. Matched steel rope is with different pull strength.
Dia: 1.6mm, 0.063”, Pull test load: 170 kg, 375 lbs.
Dia: 2.0mm, 0.078”, Pull test load: 250 kg, 551 lbs.
Dia: 2.5mm, 0.095”, Pull test load: 450 kg, 992 lbs.

Any appointed connector could be made as customer’s request. Let us know the exact item No. in advance.
