Vandal Proof Telephone Handset

SINIWO is an original vandal proof telephone handset factory in China for 18 years. With steady material supplying chain in stock, SINIWO offer vandal proof telephone handset with reliable delivery time and competitive price.

Model: A14

Description

The SINIWO vandal-proof telephone handset features a rugged, leather-grain surface that resists impact and vandalism. Designed for high-traffic public areas such as campuses, kiosks, and vending machines, it ensures reliable communication in demanding environments.

Specifications

Parameter of vandal proof telephone handset:

Model No. A14
Waterproof Grade IP65
Ambient Noise ≤60dB
Working Frequency 300~3400Hz
SLR 5~15 dB
RLR -7~2 dB
Working Temperature Common:-20℃~+40℃
Special: -40℃~+50℃
(Please tell us your request in advance)
Relative Humidity ≤95%
Atmospheric Pressure 80~110Kpa
Handset color Black, red or othercustomizedcolor

Feature

Feature of vandal proof telephone handset:

1. This SINIWO vandal proof telephone handset is specially designed for public telecommunication like in campus, in public kiosk or vending machine with strong pulling strength armored cord and lanyard.

2. When SINIWO design vandal proof telephone handset for public use, the material feature is the most important factor for SINIWO team. Taking the vandal-proof feature into consideration, SIMIWO choose UL approved ABS material which has strong IZOD impact properties during test.

Details

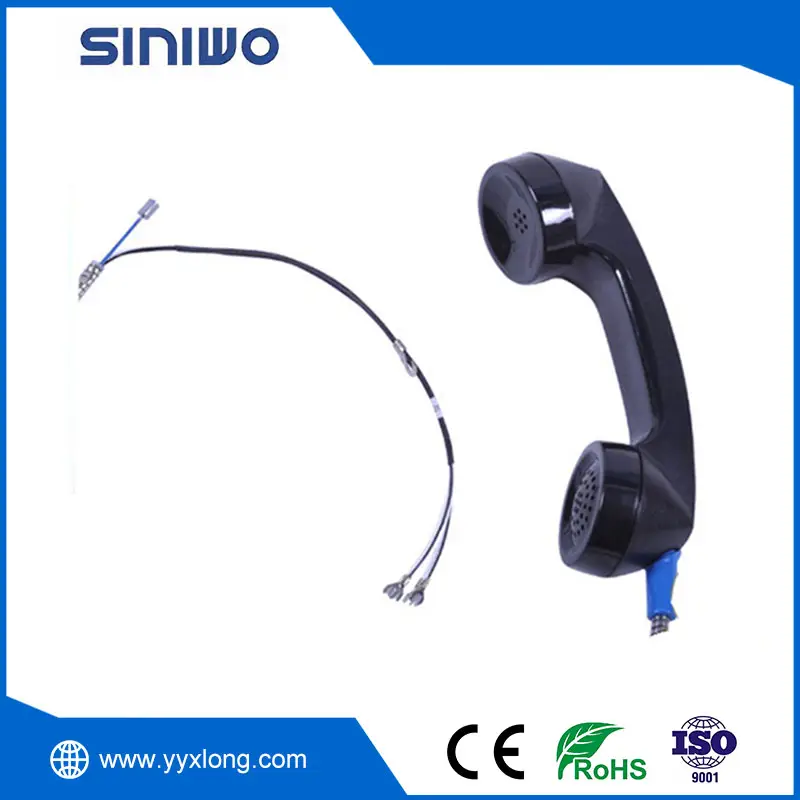

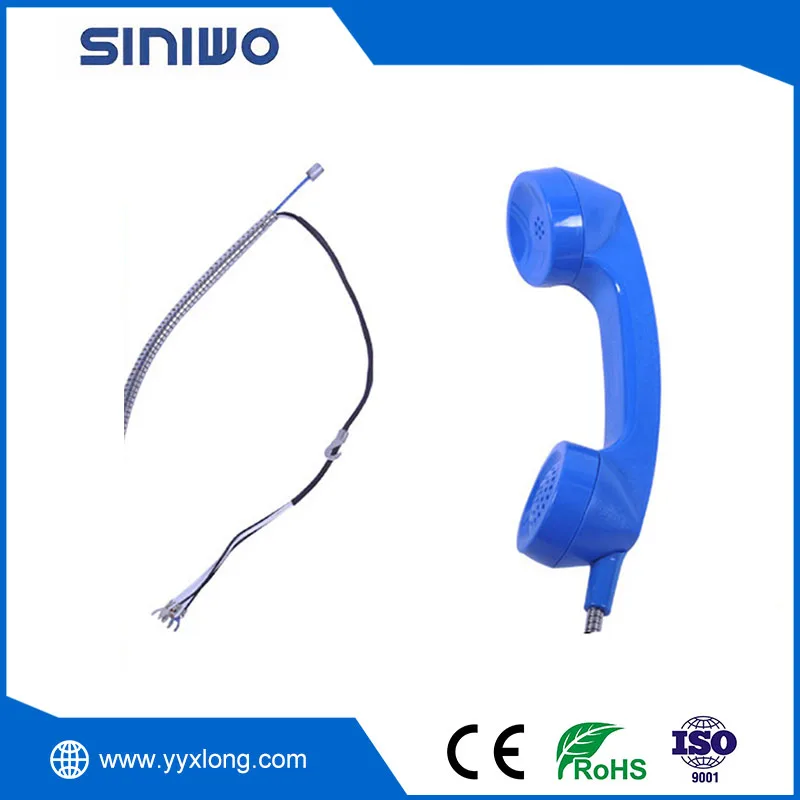

Vandal proof telephone handset external cord details:

PVC curly cord (Default), working temperature: -20℃~+40℃
Standard cord length 9 inch in retracted, 6 feet after extended (Default)
Customized different length is available.
Weather resistant PVC curly cord (Optional), working temperature: -30℃~+50℃
Hytrel curly cord (Optional) working temperature: -40℃~+100℃
SUS304 Stainless steel armored cord (Default)
Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
Include steel lanyard which is anchored to telephone shell. Matched steel rope is with different pull strength. – Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.

5---------_147350

As this vandal proof telephone handset is not only used in telephones but also outdoor kiosk and vending machine. So the handset terminal could be made according to clients request completely.
