Weatherproof Telephone Handset

SINIWO is a professional manufacturer and supplier in China. Our factory provides industrial keypad, emergency telephone handset, metal keypad, etc.

Weatherproof Telephone Handset

SINIWO is an original weatherproof telephone handset manufacturer and supplier in China. With rich experience R& D team in this filed, we could offer the best professional solution for clients with competitive price from home and abroad. We have been the first customize weatherproof telephone handset factory in China according to clients request.

Model: A01

Description

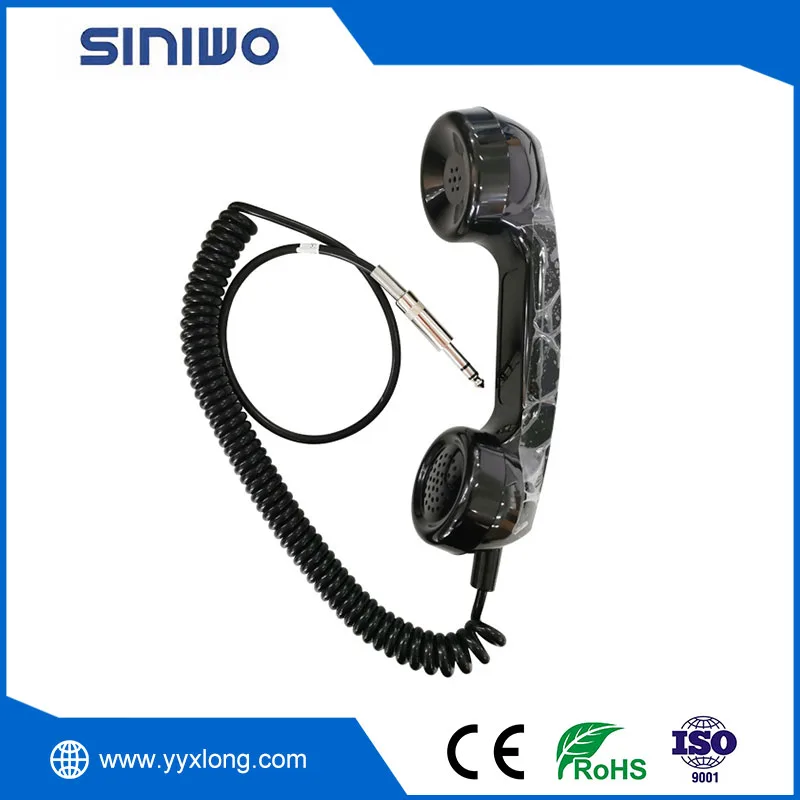

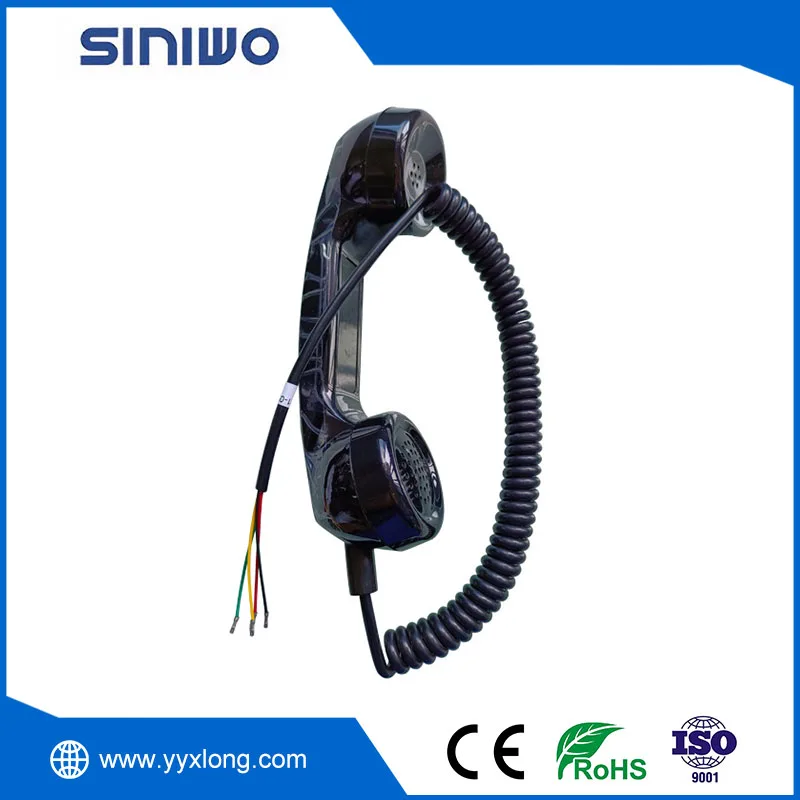

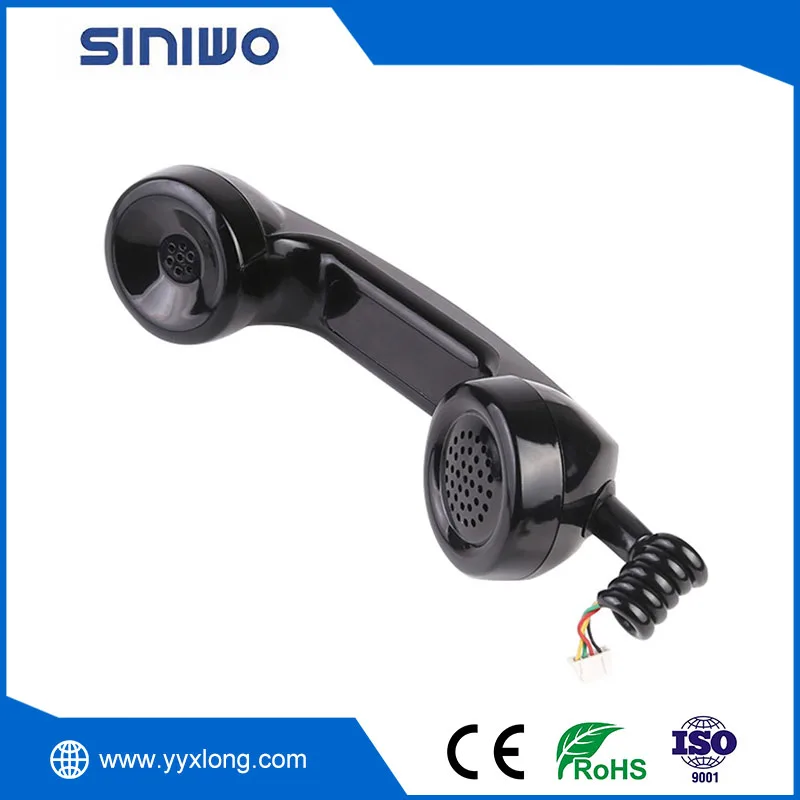

The SINIWO weatherproof telephone handset is a robust communication device engineered for durability and reliable performance in harsh environments. Featuring an IP65-rated waterproof design and a rugged exterior, it is equipped with a high-quality speaker and microphone. Specifically designed by SINIWO for use in gas and oil telecommunication stations, seaport emergency telephones, and public telephony systems, this handset is built to withstand extremely low outdoor temperatures.

Specifications

Parameter of weatherproof telephone handset:

Model No. A01
Waterproof Grade IP65
Ambient Noise ≤60dB
Working Frequency 300~3400Hz
SLR 5~15 dB
RLR -7~2 dB
Working Temperature Common:-20℃~+40℃
Special: -40℃~+50℃
(Please tell us your request in advance)
Relative Humidity ≤95%
Atmospheric Pressure 80~110Kpa

Feature

Feature of weatherproof telephone handset:

1. This weatherproof telephone handset is ergonomically designed and suitable for most of the outdoor telephones. As a special manufacturer in industrial telecommunication filed, we have rich experience in design weatherproof telephone handset and provide solutions for clients.

When we design weatherproof telephone handset for gas and oil platform or seaport, waterproof grade and endurance to the hostile environment are the priority features to think about. So we take all the details into consideration from the original materials to internal structures, electrical components and external curly cord.

For those weatherproof telephone handset used in harsh environment, Lexan anti-UV PC material or carbon loaded ABS material are available for different usages; Different impedance microphone and speaker are matched with various motherboard; Hearing-aid function speaker and noise reducing microphone are available for different users.

Details

Weatherproof telephone handset external curly cord details:

PVC curly cord (Default), working temperature: -20℃~+40℃
Standard cord length 9 inch in retracted, 6 feet after extended (Default)
Customized different length is available.
Weather resistant PVC curly cord (Optional), working temperature: -30℃~+50℃
Hytrel curly cord (Optional) working temperature: -40℃~+100℃

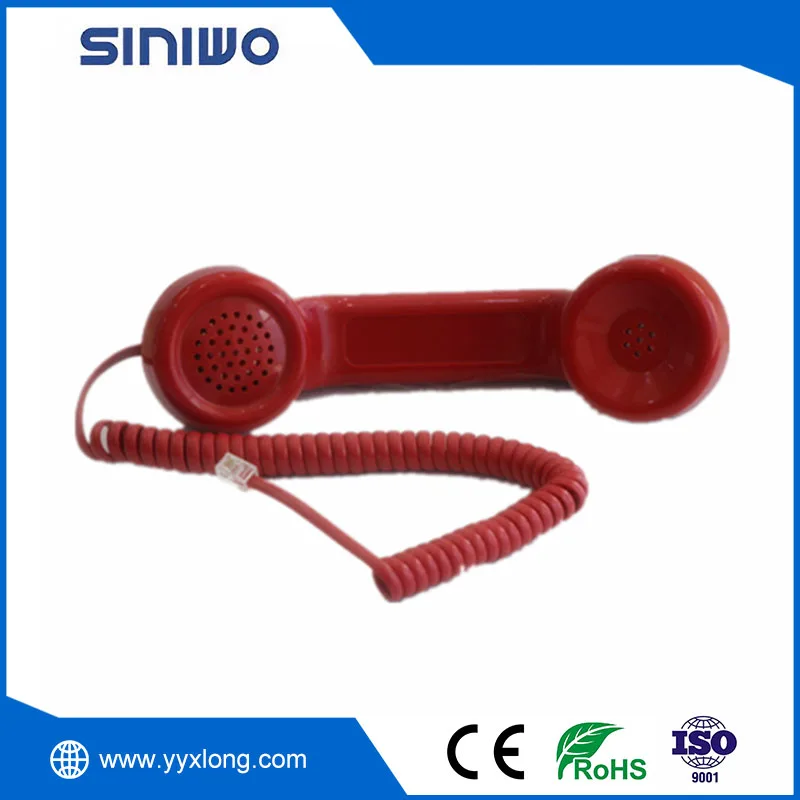

For this weatherproof telephone handset, we accept customization in color and logo print. The regular color in stock is in black and red. Any other color could be customized according to Pantone No. or color sample.

As this weatherproof telephone handset is not only used in telephones but also outdoor kiosk and vending machine. So the handset terminal could be made according to clients request completely.
